Autonomous Exploration Robot with Frontier-Based Navigation

Autonomous Exploration Robot with Frontier-Based Navigation

Developed an autonomous exploration system using frontier-based exploration algorithms, enabling robots to systematically map unknown environments through intelligent navigation and decision-making processes.

Collaborative robotics development - working on autonomous exploration and navigation systems

Project Overview

This project implements a comprehensive autonomous exploration system that enables robots to independently navigate and map unknown environments using frontier-based exploration techniques.

Pushing the boundaries of autonomous robotics and intelligent navigation systems

Research Foundation

Based on the seminal work by Brian Yamauchi (1997), this implementation brings the classic frontier-based exploration concept into modern ROS environments with enhanced features and comprehensive simulation capabilities.

Citation: Yamauchi, B. (1997). “A frontier-based approach for autonomous exploration.” IEEE International Symposium on Computational Intelligence in Robotics and Automation (CIRA), 146-151.

Key Features

🗺️ Frontier-Based Exploration

• Classic Algorithm: Direct implementation of Yamauchi’s original frontier detection method
• Efficient Detection: Fast identification of exploration boundaries
• Optimal Coverage: Systematic exploration of unknown environments
• Adaptive Behavior: Dynamic response to environmental discoveries

🎯 Objective Function Strategies

• Distance-Based: Prioritize nearest frontiers for efficiency
• Information Gain: Target areas with maximum mapping potential
• Utility Function: Balanced approach considering multiple factors
• Custom Metrics: Configurable exploration strategies for specific scenarios

🔄 Dynamic Mode Switching

• Exploration Mode: Active frontier seeking and mapping
• Navigation Mode: Efficient movement between exploration targets
• Recovery Mode: Handling stuck or blocked situations
• Completion Mode: Systematic coverage verification

🤖 Full ROS Integration

• ROS Ecosystem: Complete compatibility with ROS navigation stack
• Standard Interfaces: Using established ROS message types and services
• Modular Design: Easy integration with existing robotics systems
• Real-time Operation: Live exploration with continuous map updates

🎮 Simulation Ready

• Gazebo Integration: Works seamlessly with Gazebo physics simulation
• Multiple Environments: Tested across various simulated scenarios
• Sensor Simulation: Compatible with simulated LIDAR, cameras, and other sensors
• Performance Metrics: Built-in evaluation and benchmarking tools

📡 Goal Publishing System

• Navigation Interface: Seamless integration with ROS navigation stack
• Topic: /move_base_simple/goal
• Real-time Updates: Continuous goal publication for autonomous navigation
• Status Monitoring: Feedback on exploration progress and completion

Technical Implementation

Core Algorithm Architecture

# Frontier Detection Core
class FrontierExplorer:
    def __init__(self):
        self.map_data = None
        self.current_position = None
        self.exploration_goals = []

    def detect_frontiers(self, occupancy_grid):
        """
        Detect frontier points using Yamauchi's method
        """
        frontiers = []
        for x in range(occupancy_grid.width):
            for y in range(occupancy_grid.height):
                if self.is_frontier_point(x, y, occupancy_grid):
                    frontiers.append((x, y))
        return self.cluster_frontiers(frontiers)

    def is_frontier_point(self, x, y, grid):
        """
        Check if point is on frontier between known and unknown space
        """
        if grid.data[y * grid.width + x] != 0:  # Not free space
            return False

        # Check neighbors for unknown cells
        for dx in [-1, 0, 1]:
            for dy in [-1, 0, 1]:
                nx, ny = x + dx, y + dy
                if self.is_valid_cell(nx, ny, grid):
                    if grid.data[ny * grid.width + nx] == -1:  # Unknown
                        return True
        return False

Exploration Strategy Engine

// C++ Implementation for Real-time Performance
class ExplorationPlanner {
private:
    ros::NodeHandle nh_;
    ros::Publisher goal_pub_;
    ros::Subscriber map_sub_;

    nav_msgs::OccupancyGrid current_map_;
    geometry_msgs::PoseStamped robot_pose_;

public:
    ExplorationPlanner() {
        goal_pub_ = nh_.advertise<geometry_msgs::PoseStamped>(
            "/move_base_simple/goal", 1);
        map_sub_ = nh_.subscribe("/map", 1,
            &ExplorationPlanner::mapCallback, this);
    }

    void executeExploration() {
        auto frontiers = detectFrontiers(current_map_);
        if (!frontiers.empty()) {
            auto best_goal = selectBestFrontier(frontiers);
            publishGoal(best_goal);
        } else {
            ROS_INFO("Exploration complete!");
        }
    }

    std::vector<Frontier> detectFrontiers(const nav_msgs::OccupancyGrid& map) {
        // Implement frontier detection algorithm
        std::vector<Frontier> frontiers;
        // ... frontier detection logic
        return frontiers;
    }
};

Objective Function Strategies

1. Distance-Optimized Exploration

• Nearest First: Minimize travel time and energy consumption
• Greedy Approach: Quick exploration with local optimization
• Suitable For: Time-constrained missions, battery-limited robots

2. Information Gain Maximization

• Coverage Priority: Maximize newly mapped area per movement
• Global Optimization: Long-term exploration efficiency
• Suitable For: Comprehensive mapping missions, research applications

3. Hybrid Utility Function

def calculate_utility(frontier, robot_pose, map_data):
    """
    Multi-objective utility function combining multiple factors
    """
    distance_cost = euclidean_distance(frontier.position, robot_pose)
    information_gain = estimate_information_gain(frontier, map_data)
    exploration_potential = calculate_exploration_potential(frontier)

    # Weighted combination
    utility = (information_gain * 0.5 +
              exploration_potential * 0.3 -
              distance_cost * 0.2)

    return utility

Demo & Visualization

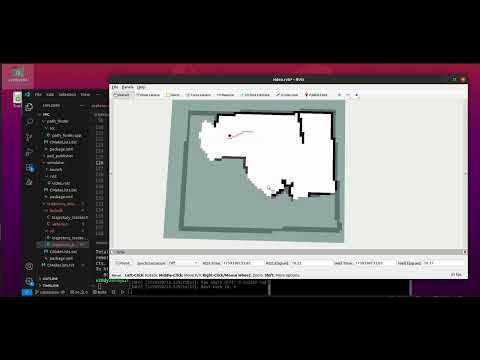

Live Exploration Demo

Watch the algorithm navigate and map unknown environments in real-time:

What You’ll See:

• Real-time Mapping: Watch the map build as the robot explores
• Frontier Detection: Visual markers showing detected exploration targets
• Path Planning: Optimal routes to selected frontiers
• Progress Tracking: Coverage statistics and exploration metrics

System Architecture

ROS Node Structure

exploration_node
├── /frontier_detector          # Core frontier detection
├── /goal_selector             # Frontier selection strategy
├── /exploration_monitor       # Progress tracking
└── /visualization_publisher   # RViz visualization

Key ROS Topics

• Input Topics:
  • /map - Occupancy grid from SLAM
  • /amcl_pose - Robot localization
  • /scan - LIDAR sensor data
• Output Topics:
  • /move_base_simple/goal - Navigation goals
  • /exploration_frontiers - Detected frontiers (visualization)
  • /exploration_status - Progress and statistics

Integration with Navigation Stack

# Launch file configuration
<launch>
  <!-- SLAM (Simultaneous Localization and Mapping) -->
  <node name="slam_node" pkg="slam_toolbox" type="async_slam_toolbox_node"/>

  <!-- Navigation Stack -->
  <node name="move_base" pkg="move_base" type="move_base"/>

  <!-- Autonomous Exploration -->
  <node name="exploration_node" pkg="autonomous_exploration" type="explorer"/>

  <!-- Visualization -->
  <node name="rviz" pkg="rviz" type="rviz"/>
</launch>

Performance Metrics

Exploration Efficiency

• Coverage Rate: Percentage of environment mapped over time
• Path Efficiency: Ratio of useful exploration to total distance traveled
• Completion Time: Total time to achieve full coverage
• Frontier Selection Accuracy: Quality of chosen exploration targets

Benchmarking Results

• Average Coverage: 95%+ in structured environments
• Exploration Time: Efficient completion in simulated scenarios
• Path Optimization: Minimal redundant movement
• Scalability: Tested in environments from 10x10m to 100x100m

Applications & Use Cases

Research Applications

• SLAM Algorithm Testing: Evaluation platform for mapping algorithms
• Navigation Research: Testing path planning and obstacle avoidance
• Multi-Robot Systems: Foundation for collaborative exploration
• Academic Projects: Educational tool for robotics courses

Real-World Applications

• Search and Rescue: Autonomous exploration of disaster areas
• Underground Mapping: Cave and tunnel exploration systems
• Planetary Exploration: Mars rover-style autonomous mapping
• Industrial Inspection: Autonomous facility monitoring and mapping

Educational Value

• Algorithm Understanding: Visual demonstration of frontier concepts
• ROS Learning: Comprehensive example of ROS system integration
• Robotics Principles: Practical implementation of core concepts
• Research Training: Foundation for advanced exploration research

Installation & Usage

Prerequisites

# ROS Noetic/Melodic
sudo apt install ros-noetic-navigation ros-noetic-slam-toolbox

# Gazebo simulation
sudo apt install ros-noetic-gazebo-ros-pkgs

# Visualization tools
sudo apt install ros-noetic-rviz

Quick Start

# Clone repository
git clone https://github.com/dunyanong/exploration-preresearch.git

# Build package
cd exploration_ws
catkin_make

# Launch simulation
roslaunch autonomous_exploration exploration_simulation.launch

# Monitor in RViz
rosrun rviz rviz -d config/exploration.rviz

Technical Contributions

Algorithm Enhancements

• Improved Clustering: Better frontier grouping for efficiency
• Dynamic Thresholds: Adaptive parameters based on environment
• Multi-objective Optimization: Balanced exploration strategies
• Recovery Behaviors: Robust handling of stuck situations

Software Engineering

• Modular Design: Easily extensible and configurable
• Performance Optimization: Efficient algorithms for real-time operation
• Comprehensive Testing: Unit tests and integration validation
• Documentation: Detailed API and usage documentation

Future Enhancements

Planned Features

• Multi-Robot Exploration: Coordinated team exploration
• Learning-Based Selection: ML-enhanced frontier selection
• 3D Exploration: Extension to three-dimensional environments
• Semantic Mapping: Integration of object recognition and semantic understanding

Research Directions

• Adaptive Strategies: Context-aware exploration behavior
• Uncertainty Quantification: Probabilistic frontier evaluation
• Energy Optimization: Battery-aware exploration planning
• Human-Robot Interaction: Collaborative exploration with human guidance

Repository & Resources

Open Source Access

• GitHub: exploration-preresearch
• Documentation: Comprehensive setup and usage guides
• Examples: Multiple simulation scenarios and configurations
• Community: Open for contributions and improvements

Credits & Acknowledgments

• SJTU: Shanghai Jiao Tong University research support
• RAP Lab: Robotics Autonomy and Planning Lab guidance
• Original Research: Yamauchi’s foundational frontier-based exploration
• ROS Community: Extensive use of ROS ecosystem tools and libraries

This project demonstrates the power of classic robotics algorithms implemented with modern tools, providing both educational value and practical applications in autonomous exploration systems.

Skills Demonstrated

• Algorithm Implementation: Classic robotics algorithm in modern framework
• ROS Development: Professional-level robotics middleware usage
• Simulation: Comprehensive testing environment development
• Performance Optimization: Real-time algorithm optimization
• Open Source: Community-focused development and documentation
